Balanced and multi-spring mechanical seal (metric)FOBX

 The FOUX o-ring pusher type ,balanced and multi-spring mechanical seal, the product conforms to DIN24960, ISO3069, ANSI B73.1 design specifications.

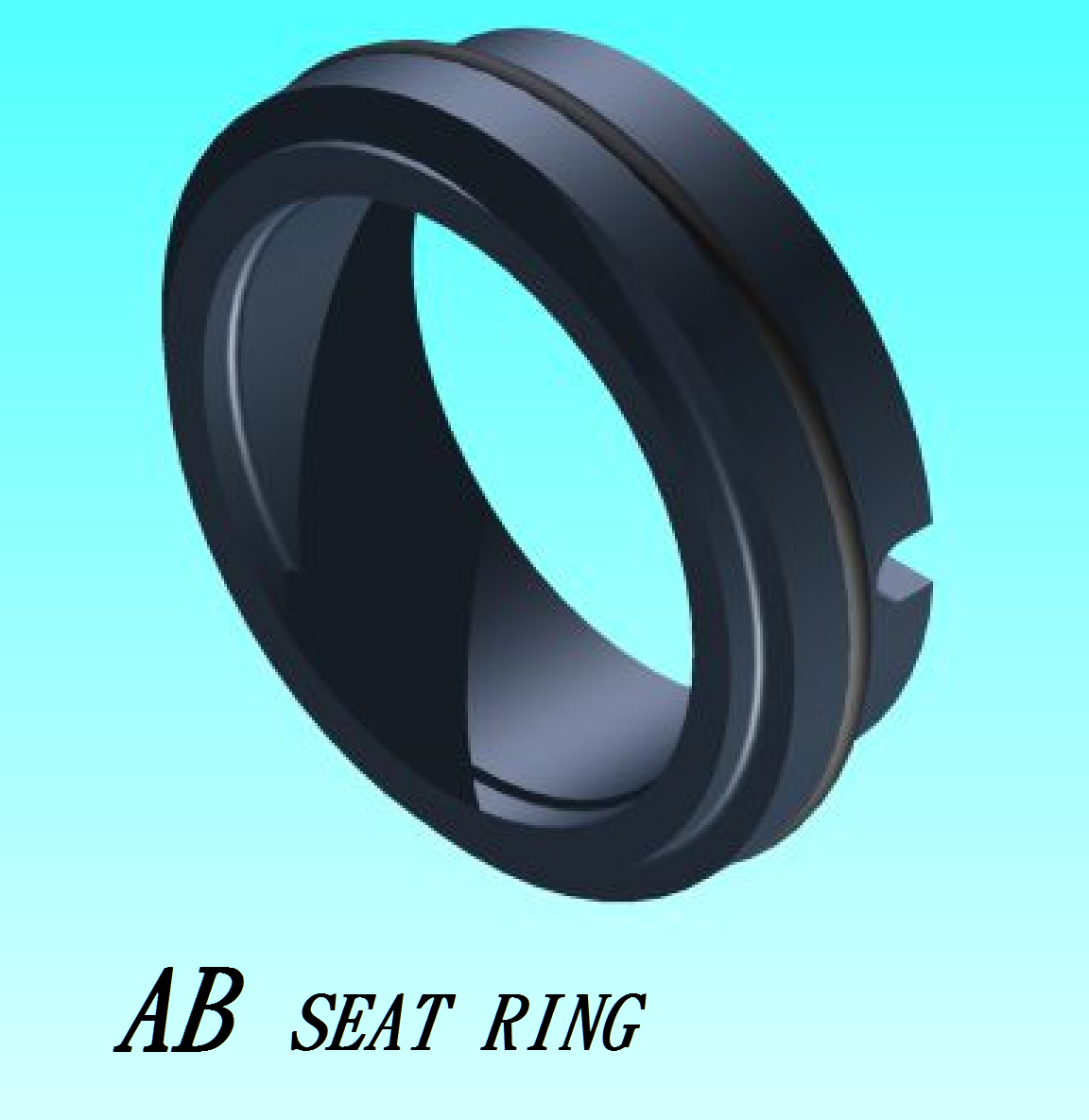

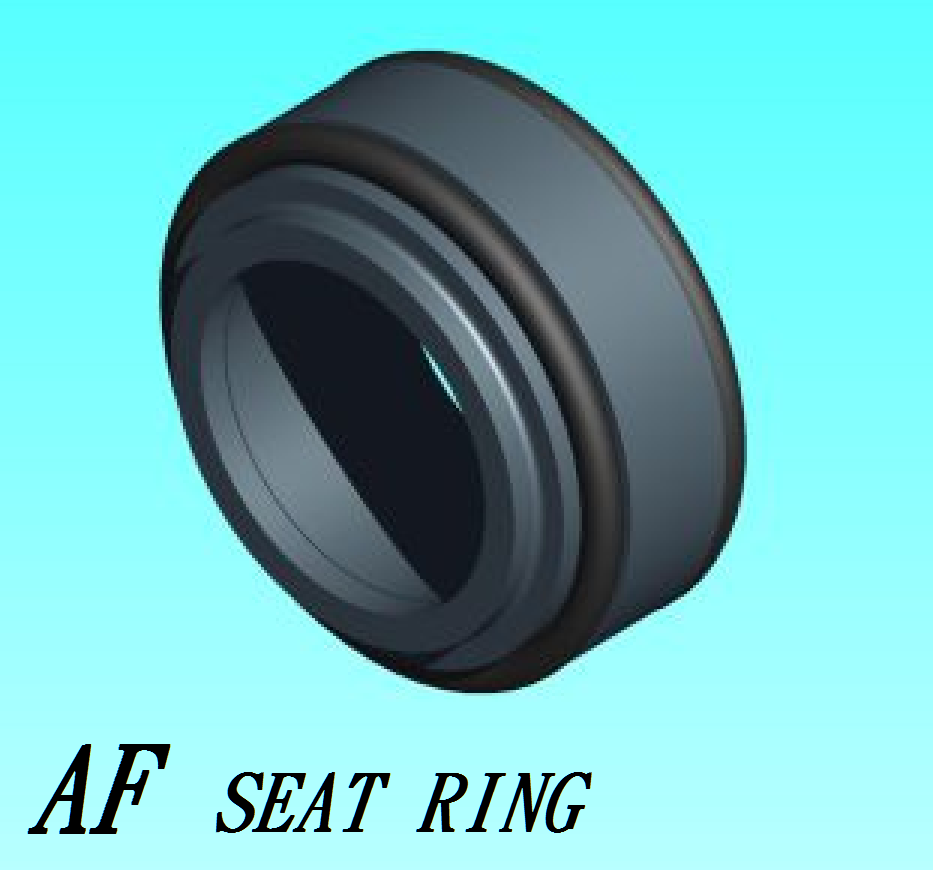

Seat ring style with "AB type"=FOUA or "AF type"=FOUE

Download 1
  • Temp Range:-30°C~200°C (-40°F~+400°F)
  • Max Pressure:

  •  "AB" SEAT RING 16kg/cm2 (230 PSI)

     "AF" SEAT RUNG 30kg.cm2 (440 PSI)

  • Max Speed 20m/sec (5000f/m)

  • Seal Face Material: Silicon Carbide/Tungsten Carbide/Carbon

  • Metal Material: SUS316/HAST.C/TI2
  • Secondary Seal:FFKM/FKM/FEPM/NBR/EPDM
  • Chemical plant
  • Wastewater treatment plant
  • power plant
  • food factory
  • Biotechnology Factory
  • Steel Plant
  • Paper mill
